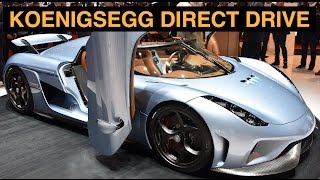

The Koenigsegg Direct Drive System: Unveiling the Secrets Behind the Hypercar's Power and Efficiency
The Koenigsegg Agera RS, unveiled at the 2011 Geneva Motor Show, is a marvel of engineering that pushes the boundaries of automotive performance. One of its most intriguing features is the direct drive system, which combines a five-liter twin-turbo V8 engine with two additional electric motors to create an unparalleled driving experience. In this article, we will delve into the details of the Koenigsegg Direct Drive System, exploring how it works, its benefits, and its technical specifications.
At the heart of the direct drive system is a five-liter twin-turbo V8 engine that produces 820 kilowatts or approximately 1100 horsepower. This massive powerplant is mounted centrally, likely in front of the passenger seat, and drives the rear wheels through a hydraulic coupling, which works similarly to a locking torque converter. The coupling allows the engine's power to be redirected to the rear wheels as needed, optimizing traction and acceleration.
Behind this engine lies an additional electric motor that produces 215 horsepower. This starter motor is also connected to the crankshaft, ensuring seamless power transmission between the engine and the drivetrain. Furthermore, each axle features an additional electric motor, each producing 180 kilowatts or approximately 240 horsepower. These motors send their combined power to the rear wheels, providing an immense boost in acceleration when starting from a standstill.
The process of acceleration is quite fascinating. As the car begins moving from a standstill, the two rear motors take over, providing the majority of the torque. As speed increases, the engine's RPM rises, and the hydraulic coupling gradually closes up. This allows the third motor to contribute to acceleration, ensuring a seamless transition between power sources. Around 30 miles per hour or slightly after reaching 1000 RPM, the hydraulic coupling can lock up, directly powering the rear wheels from the engine.
The direct drive system eliminates the need for a traditional transmission, reducing weight and increasing efficiency. In comparison to parallel hybrid systems, the Koenigsegg Direct Drive System avoids the losses associated with transmitting energy between mechanical and electrical domains. Series hybrid systems also benefit from this approach, as it minimizes energy conversion losses by using electric motors directly connected to the wheels.
To illustrate the capabilities of this system, let's perform a simple calculation to estimate the top speed of the Koenigsegg Agera RS. The wheel circumference is approximately 345 millimeters, which translates to a diameter of 28.1 inches (20 + 2 x 4.075). With a final drive ratio of 2.85:1, we can calculate the engine RPM and ultimately determine the top speed.
Dividing the 8250 RPM engine redline by the final drive ratio yields an axle RPM of 2894.7 revolutions per minute (RPM). Multiplying this by 60 minutes per hour gives us a wheel RPM of approximately 173 kilometers per hour. To convert this to miles per hour, we multiply by 12 inches (1 foot) and then by 5280 feet (miles).
The resulting speed calculation is remarkably close to 242.4 miles per hour. Although this value falls slightly short of the expected 249 miles per hour with a 0.75-inch difference in wheel diameter, it's clear that this direct drive system offers impressive acceleration and performance capabilities.
In conclusion, the Koenigsegg Direct Drive System is an innovative marvel of engineering that showcases the company's expertise in creating exceptional automotive experiences. By understanding how this complex system works, we can appreciate the technical genius behind its design and performance.
"WEBVTTKind: captionsLanguage: enhello everyone and welcome in this video we're going to be discussing how the koenigsegg direct drive system works in the koenigsegg rig era and actually it's pretty straightforward and simple how this design works surprisingly or not but anyways looking at it so here we have the two rear wheels of the vehicle you've got a battery which is placed kind of towards the front but in the center uh probably between you and the passenger of the koenigsegg and then here you have a five liter twin turbo v8 producing 820 kilowatts or about 1100 horsepower an insane amount of power now behind that engine actually or towards the front of the vehicle you do have 160 kilowatt motor or about 215 horsepower and this is also the starter for the engine so that's hooked up to the crankshaft with this engine and then the engine sends its power through a hydraulic coupling sounds very similar to a locking torque converter as it does have the ability to lock up power is then sent to the rear differential which has a final drive ratio of 2.85 to 1 and then towards the outer wheel now on each axle you do have an additional electric motor each producing 180 kilowatts or about 240 horsepower sending power to the rear wheels so what is the process how does this work well getting started from a stop these two rear motors are going to be doing all of the acceleration to get you started then as your speed starts to increase the engine rpm starts to increase and this hydraulic coupling starts to close up so this third motor is now aiding in acceleration because you're passing some of the torque from this motor through that hydraulic coupling to the rear wheels then around 30 miles per hour or a little bit after you reach a thousand rpm this hydraulic coupling can close up and once it's closed up then you're directly driving from the engine to the rear wheels so really the only difference here between this and let's say a different uh form of car whether it's hybrid or not is that between this hydraulic coupling and this final drive is that you would have a transmission put in there and then they've added you know this hybrid system on top of it so the benefit of taking out that transmission first of all you're taking out some weight but let's compare it to a parallel hybrid system well you don't have that transmission with the efficiency losses through it and if you're to compare it to a series hybrid system well then you're not converting that energy multiple times from mechanical to electrical back to mechanical in order to power the car so it's more efficient in that sense so let's just do a little bit of math to check and find out what the top speed is because this engine does lock up to the rear wheels and you can use the gearing to determine what your top speed is since you do have that direct drive so the first thing we need to know is the wheel circumference and i looked at some photos of the car from geneva and you could see that the rear tires were 345 over 30 are 20 tires so if we take 345 millimeters multiply that by the ratio that's what the 30 represents and then divide that by 25.4 millimeters in an inch that gives us a profile of 4.075 inches now to find our diameter we've got 20 plus 2 times 4.075 that gives us a wheel diameter and tire diameter of 28.1 inches so we multiply that by pi and we get 88.4358 inches that's the circumference of this tire now let's find out what the wheel rpm is so we know that our engine rpm redline is 8250 so we simply divide that by the final drive ratio that gives us 2894.7 rpm so now we can find out what our top speed is so speed is equal to this number here this rpm multiplied by 60 minutes in an hour that way we'll get revolutions per hour rather than revolutions per minute then we're multiplying that by the number of inches the distance this wheel travels with one revolution its circumference so 88.4358 divided by 12 inches in a foot multiplied by 5200 feet in a mile so that will give us uh miles per hour once we multiply this all out rather than you know these uh inches per minute so we have a final speed calculated from this of 242.4 miles per hour so why isn't that 249 miles per hour well it's not that far off honestly so if we were to have a 0.75 inch difference in diameter of those wheels then that would accommodate that and we'd be at 249 miles per hour and one other thing you know let's say this is the exact dimension and this is the exact circumference of those tires 88.4358 well when they're spinning at 240 some miles per hour they're going to kind of expand out from all those radial g's and so that could accommodate that 0.75 inches which would make it up to the 249 miles per hour so hopefully you have some insight into how the koenigsegg direct drive works if you have any questions or comments feel free to leave them below thanks for watchinghello everyone and welcome in this video we're going to be discussing how the koenigsegg direct drive system works in the koenigsegg rig era and actually it's pretty straightforward and simple how this design works surprisingly or not but anyways looking at it so here we have the two rear wheels of the vehicle you've got a battery which is placed kind of towards the front but in the center uh probably between you and the passenger of the koenigsegg and then here you have a five liter twin turbo v8 producing 820 kilowatts or about 1100 horsepower an insane amount of power now behind that engine actually or towards the front of the vehicle you do have 160 kilowatt motor or about 215 horsepower and this is also the starter for the engine so that's hooked up to the crankshaft with this engine and then the engine sends its power through a hydraulic coupling sounds very similar to a locking torque converter as it does have the ability to lock up power is then sent to the rear differential which has a final drive ratio of 2.85 to 1 and then towards the outer wheel now on each axle you do have an additional electric motor each producing 180 kilowatts or about 240 horsepower sending power to the rear wheels so what is the process how does this work well getting started from a stop these two rear motors are going to be doing all of the acceleration to get you started then as your speed starts to increase the engine rpm starts to increase and this hydraulic coupling starts to close up so this third motor is now aiding in acceleration because you're passing some of the torque from this motor through that hydraulic coupling to the rear wheels then around 30 miles per hour or a little bit after you reach a thousand rpm this hydraulic coupling can close up and once it's closed up then you're directly driving from the engine to the rear wheels so really the only difference here between this and let's say a different uh form of car whether it's hybrid or not is that between this hydraulic coupling and this final drive is that you would have a transmission put in there and then they've added you know this hybrid system on top of it so the benefit of taking out that transmission first of all you're taking out some weight but let's compare it to a parallel hybrid system well you don't have that transmission with the efficiency losses through it and if you're to compare it to a series hybrid system well then you're not converting that energy multiple times from mechanical to electrical back to mechanical in order to power the car so it's more efficient in that sense so let's just do a little bit of math to check and find out what the top speed is because this engine does lock up to the rear wheels and you can use the gearing to determine what your top speed is since you do have that direct drive so the first thing we need to know is the wheel circumference and i looked at some photos of the car from geneva and you could see that the rear tires were 345 over 30 are 20 tires so if we take 345 millimeters multiply that by the ratio that's what the 30 represents and then divide that by 25.4 millimeters in an inch that gives us a profile of 4.075 inches now to find our diameter we've got 20 plus 2 times 4.075 that gives us a wheel diameter and tire diameter of 28.1 inches so we multiply that by pi and we get 88.4358 inches that's the circumference of this tire now let's find out what the wheel rpm is so we know that our engine rpm redline is 8250 so we simply divide that by the final drive ratio that gives us 2894.7 rpm so now we can find out what our top speed is so speed is equal to this number here this rpm multiplied by 60 minutes in an hour that way we'll get revolutions per hour rather than revolutions per minute then we're multiplying that by the number of inches the distance this wheel travels with one revolution its circumference so 88.4358 divided by 12 inches in a foot multiplied by 5200 feet in a mile so that will give us uh miles per hour once we multiply this all out rather than you know these uh inches per minute so we have a final speed calculated from this of 242.4 miles per hour so why isn't that 249 miles per hour well it's not that far off honestly so if we were to have a 0.75 inch difference in diameter of those wheels then that would accommodate that and we'd be at 249 miles per hour and one other thing you know let's say this is the exact dimension and this is the exact circumference of those tires 88.4358 well when they're spinning at 240 some miles per hour they're going to kind of expand out from all those radial g's and so that could accommodate that 0.75 inches which would make it up to the 249 miles per hour so hopefully you have some insight into how the koenigsegg direct drive works if you have any questions or comments feel free to leave them below thanks for watching\n"
