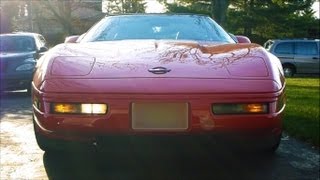

Replacing Fog Lights on a 1996 C4 Corvette: A Simple Guide

We're gonna be replacing fog lights on a 1996 C4 Corvette, and this will be similar on all the C fours. I'm replacing both of them because one of them went out, and the other ones probably bound to go out might as well just do it. The bulb size I'll be using is a 894, and it's pretty simple and straightforward.

To start the job, you'll need a seven millimeter socket with a ratchet. Since I'm replacing both bulbs, make sure not to touch these with your bare hands because oils from your skin can mess up the bulb and shorten its lifespan. Instead, wear a glove to protect yourself and the bulbs. Now, let's get down to business.

First, locate the ground for reference and identify the bolt that holds the fog light in place. You'll notice an opening that swings down for you when you unscrew the bolt. This is where the seven millimeter socket will fit perfectly. Unscrew the bolt now, and take it out completely. Twist the bulb counterclockwise until you feel it give way, then wiggle it up a bit to release it further.

You'll see your bulb and be able to actually see the filament that's broken. Don't worry; this thing could flex pretty good, so don't go past about 45 degrees if you need to adjust it. However, you can easily get your hand in here with a thumb or screwdriver to remove it completely. You'll notice there are two bulbs in the fog light, so pry them apart and then pull them down to remove them.

Now, use your glove to handle the new bulb gently and push it in until it clicks into place. Make sure it's seated properly, as it only goes in one way. With the new bulb installed, you should be able to see the hole where the light is coming out of it. Turn the bulb clockwise until it feels snug; don't overtighten it.

Now that the new bulb is installed, take a step back and admire your work. You've successfully replaced the fog lights on your 1996 C4 Corvette. If this video has helped you understand how to do this job, be sure to subscribe for more how-to videos as they come out. I have a bunch of Corvette videos that you should check out.

I did put the car on ramps just because it was hard to get video being so close to the bottom; however, you don't have to if you don't want to. The ramps do make it easier with headroom and arm room, but they're not necessary. Now, let's take a look at how the lights look after replacing them. And that is how you change a fog light in a C4 Corvette – nice and simple.

Just to recap, I've replaced both fog lights to new bulbs, which look pretty good. The new bulbs are white instead of the yellowish color they used to be. That's it for this video; if you have any questions or need further clarification on how to replace fog lights on a C4 Corvette, feel free to ask in the comments below.

"WEBVTTKind: captionsLanguage: enso we're gonna be replacing fog light on a 1996 c4 Corvette and this will be similar on all the C fours so I'm replacing both of them one of them went out the other ones probably bound to go out might as well just do it the bulb size he's gonna be a 894 and it's pretty simple and straightforward so let's let's get down to business so what you're gonna need to do the job is a seven millimeter socket with a ratchet I'm replacing both bulbs so both bulbs you don't want to touch these with your bare hands plus the oils if they get on the bulb will mess it up and shorten the lifespan so I have a glove and so we're gonna go and change this one out so there's the ground for reference and there's the bolt you could kind of see it's this opening right here that's gonna swing down for you and that's seven millimeter so let's unscrew that now take this bolt out okay so that right there is your fog light you just twist it counterclockwise you'll feel it and then you wiggle it up yeah there's your bulb and you can actually see the filament on that bulb is completely broken so give you an idea this thing could flex pretty good so don't be too concerned I wouldn't go past about 45 degrees but you can easily get your hand in here to get this off you just get your thumb in here or a screwdriver or whatever and you can see there's two of them you just pry them apart and then pull down just like that pull that out so for the new bulb again use your glove now take the foam cover off handle the bulb gently just push it in just like that it only goes in one way so with the new bulb you can see the hole right there the lights coming out of it so that's where you gonna put it in I'm gonna do that right now you feel it till it clicks in and then you turn it clockwise now that is probably hand tighten it first snug it down you don't have to go crazy get it so it's snug it's like that good now you're done so I did put the car on ramps just because it was hard to get video being so close to the bottom you don't have to if you don't want to but it does make it a little bit easier with with the headroom and arm room anyway let's see what the lights look like okay so that is how you change a fog light in a c4 Corvette nice and simple like the video if it helped out and subscribe if you want to watch more how-to videos as they come out I have a bunch of Corvette videos you should check them out so just to show you guys now both fog lights have been changed to the the new bulbs and it looks pretty good I like them they're white instead of the yellowish colorso we're gonna be replacing fog light on a 1996 c4 Corvette and this will be similar on all the C fours so I'm replacing both of them one of them went out the other ones probably bound to go out might as well just do it the bulb size he's gonna be a 894 and it's pretty simple and straightforward so let's let's get down to business so what you're gonna need to do the job is a seven millimeter socket with a ratchet I'm replacing both bulbs so both bulbs you don't want to touch these with your bare hands plus the oils if they get on the bulb will mess it up and shorten the lifespan so I have a glove and so we're gonna go and change this one out so there's the ground for reference and there's the bolt you could kind of see it's this opening right here that's gonna swing down for you and that's seven millimeter so let's unscrew that now take this bolt out okay so that right there is your fog light you just twist it counterclockwise you'll feel it and then you wiggle it up yeah there's your bulb and you can actually see the filament on that bulb is completely broken so give you an idea this thing could flex pretty good so don't be too concerned I wouldn't go past about 45 degrees but you can easily get your hand in here to get this off you just get your thumb in here or a screwdriver or whatever and you can see there's two of them you just pry them apart and then pull down just like that pull that out so for the new bulb again use your glove now take the foam cover off handle the bulb gently just push it in just like that it only goes in one way so with the new bulb you can see the hole right there the lights coming out of it so that's where you gonna put it in I'm gonna do that right now you feel it till it clicks in and then you turn it clockwise now that is probably hand tighten it first snug it down you don't have to go crazy get it so it's snug it's like that good now you're done so I did put the car on ramps just because it was hard to get video being so close to the bottom you don't have to if you don't want to but it does make it a little bit easier with with the headroom and arm room anyway let's see what the lights look like okay so that is how you change a fog light in a c4 Corvette nice and simple like the video if it helped out and subscribe if you want to watch more how-to videos as they come out I have a bunch of Corvette videos you should check them out so just to show you guys now both fog lights have been changed to the the new bulbs and it looks pretty good I like them they're white instead of the yellowish color\n"
